Internal mechanical marine tank sensors are plagued with problems that cause inaccurate readings. Jostling fluid will move the float—even in containers with baffles—and over time, arms and pivot points tend to get sticky. Capacitive sensors can likewise fail once they accumulate calcium, magnesium, phosphorus alloys and other chemicals. The wireless Gobius® Pro from Albin Group Marine overcomes these issues. Ideal for refit or OEM use, the innovative device is completely external; it measures from the outside of metal, plastic or fiberglass tanks.

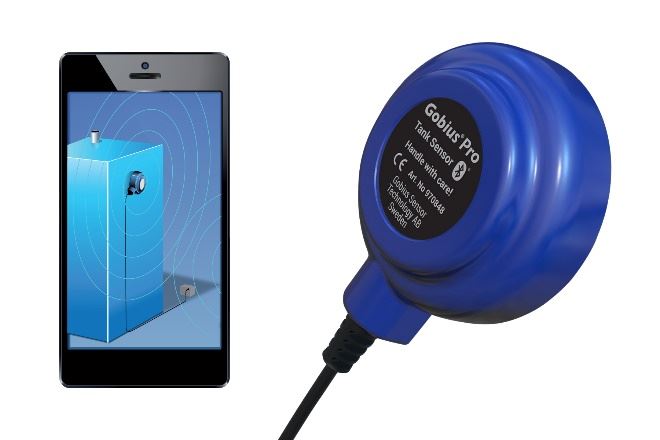

The patented Gobius Pro emits vibrations into the tank that its integrated accelerometer reads, then transmits this data via Bluetooth to the companion mobile app. Featuring dual digital outputs with on/off signals, it also integrates into NMEA 2000, BUS and other relay systems. It automatically calibrates for the tank material and contents, and works with all marine fluids such as fuel, oil, and fresh, grey and black water. The app will pair with up to nine devices installed throughout the vessel.
Unlike other sensors that require removing, drilling or cutting the tank, installing the Gobius Pro is a simple 15-minute task. Extremely compact at only 2-3/4" dia. x 1" H, it's easily mounted on a fitted tank with the supplied 3M tape. Because holes aren't needed, there's no risk of fluid or vapor leakage. The device supports 12-24V and draws a mere 10mA when idle and 100mA while measuring.
From complex to simple, Albin Group Marine offers other Gobius models for a range of applications. For stepless 0–100% measuring to within 3mm, the Gobius C is ideal, especially for unusually shaped fuel, oil, water or holding tanks. It requires only a single sensor, mounted externally on top, and transmits data via Bluetooth or BUS network.
Alternately, the base level Gobius 1 is a 3/4 level alarm for waste holding tanks. It consists of an external sensor, panel and control unit. It can be wired up to 164' away with a standard PC network Cat 5 cable.
Available in North America from Albin Group Marine, a Sudbury company, the Gobius Pro tank sensor retails for $199. The Gobius C is $390 and the Gobius 1 costs $199.
Contact Albin Group Marine, 65 Walnut St., Peabody, MA 01960. 978-532-4019. brad.burton@albin.group; www.albin.group.
